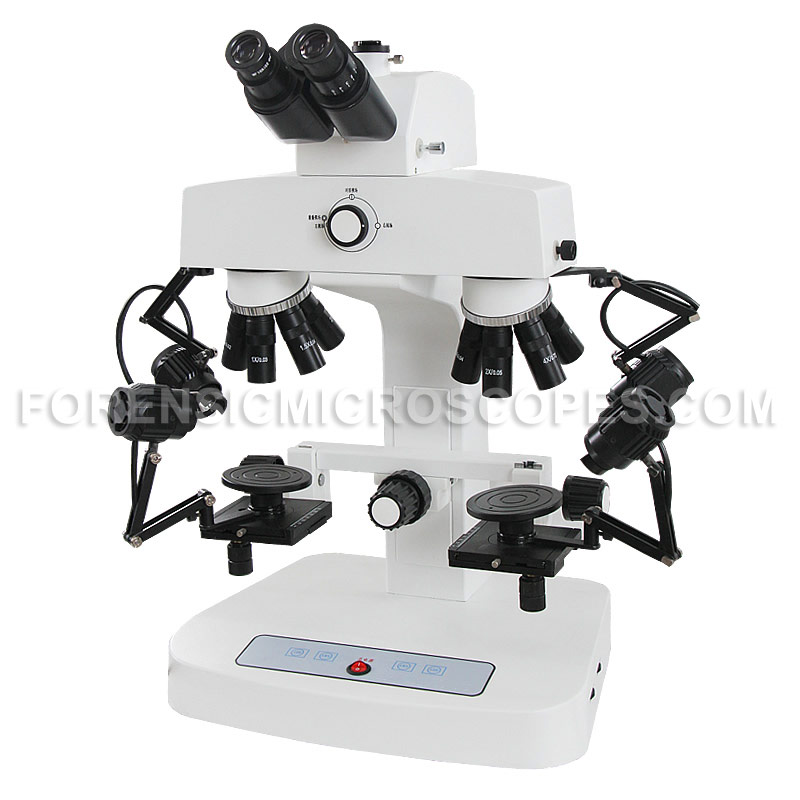

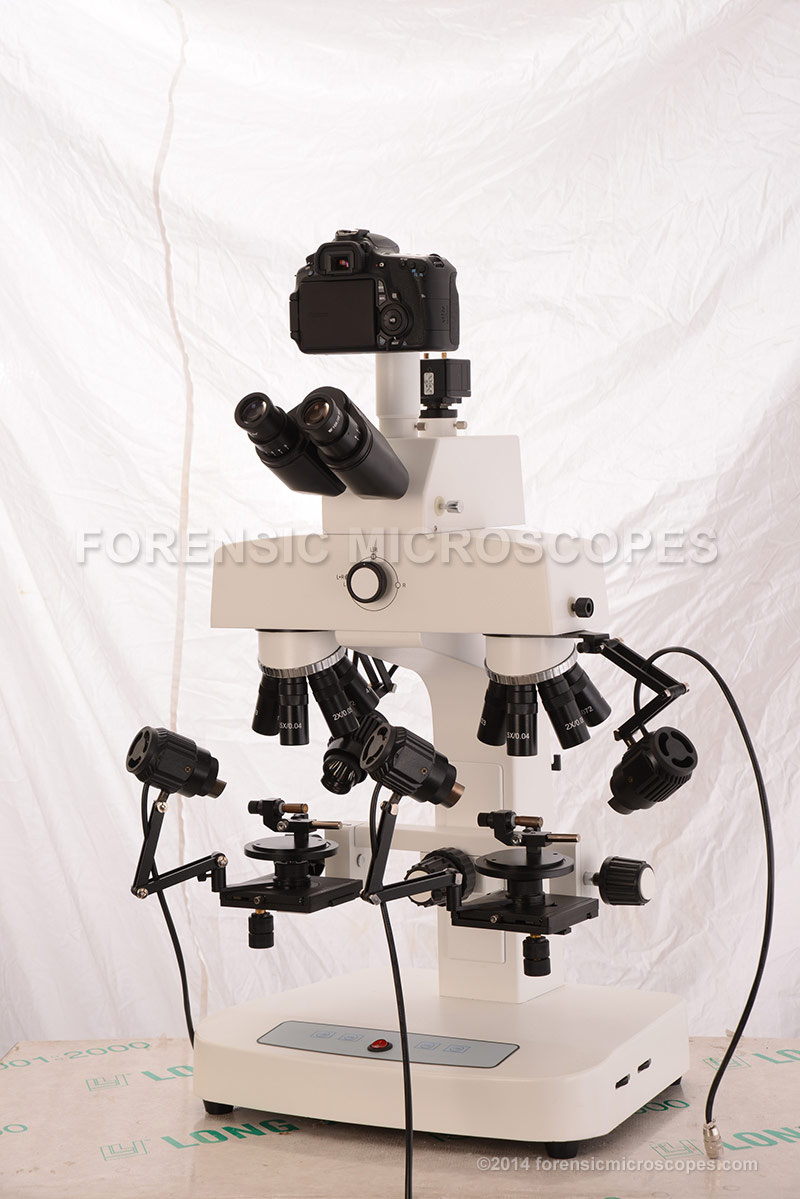

2x - 240x Bullet Comparison Microscope
Model: FM202
Price: $7,500.00
Shipping: To be determined
|
| | |
 |
|
| Features |
| |
|
|
2x - 240x Bullet Comparison Microscope, newly developed in 2013, is suitable to be used for forensic science laboratory research work, or for forensic educautional & school, to give an idea and training to the students what is a comarison microscope and learn how to use it. It is simple but including full comparison system function, and with steady quality at very competitive price!<
- Total Magnification 2x~240x
- Wide Field Eyepiece WF10x/22mm, WF20x/12mm, High Eyepoint

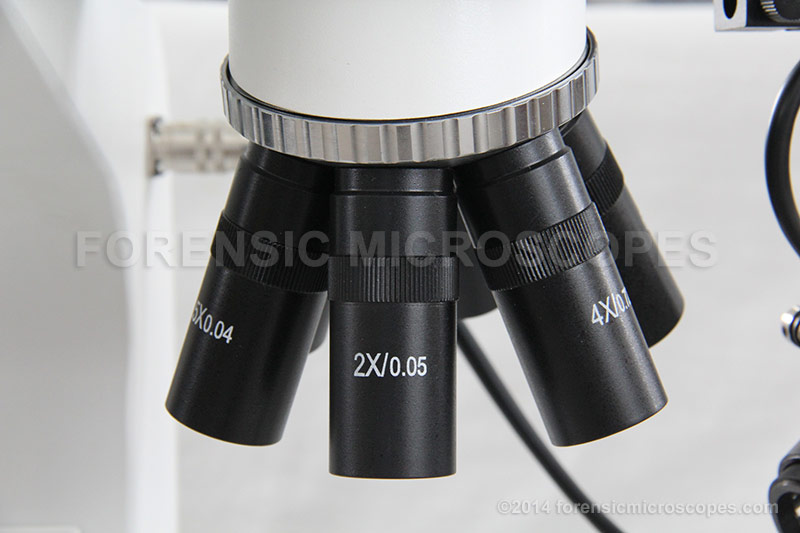

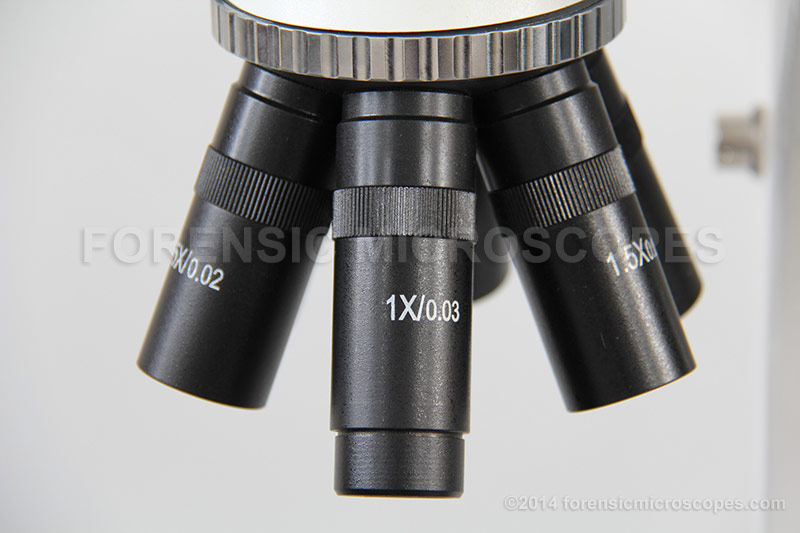

- 6 Holes Click Stop Nosepiece

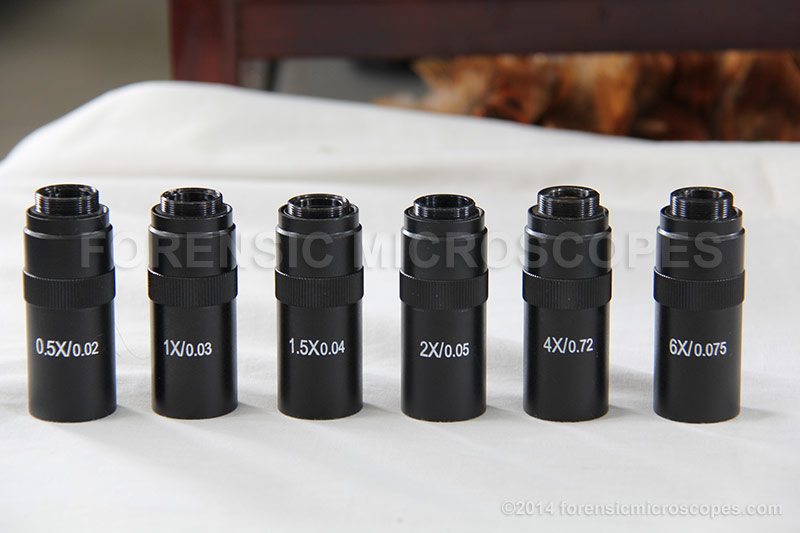

- LWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x, 6x

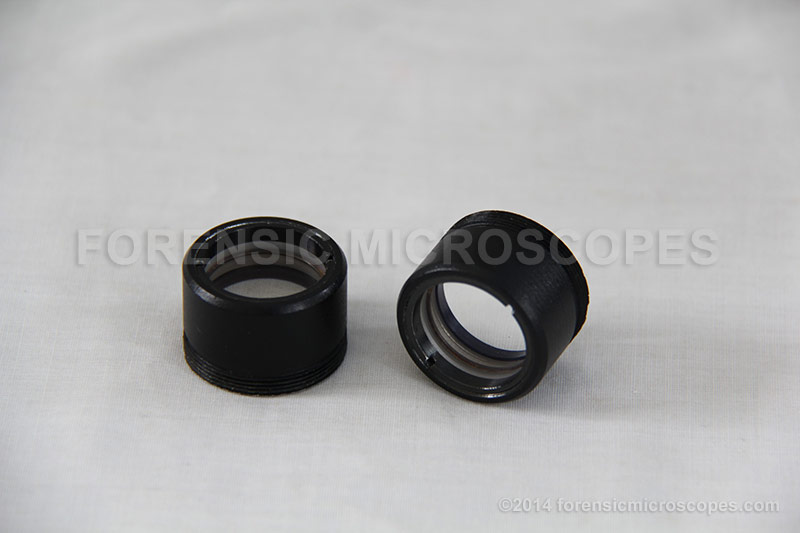

- Auxiliary Lens 0.4x and 2.0x Included

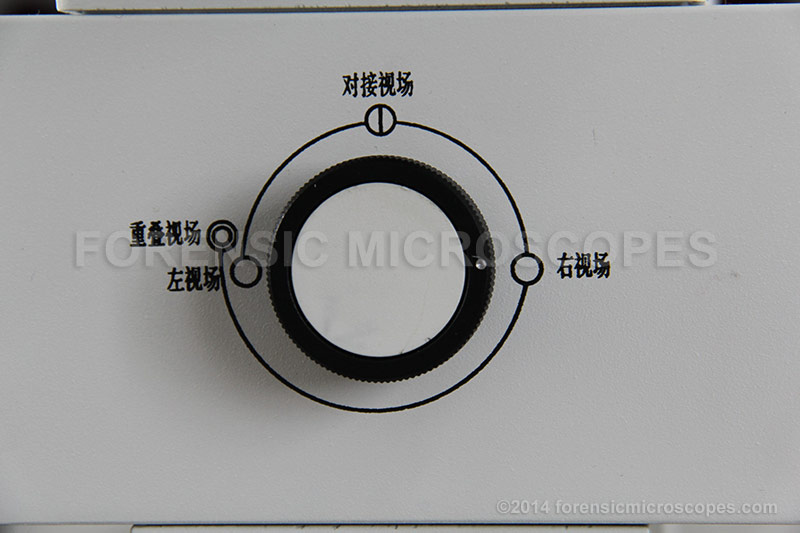

- Full left/right, split-image or overlapping image comparision
- Magnification Correcting System, with Correcting Lens

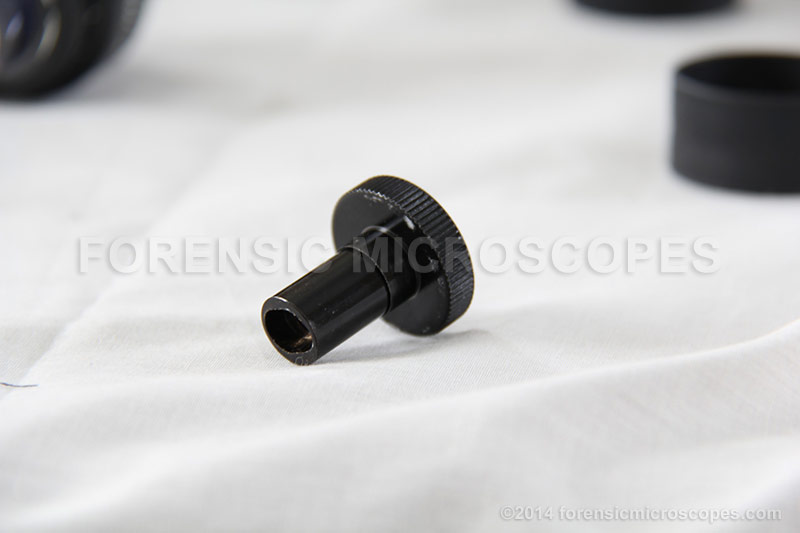

- Separation Line Adjusting System, with Special Designed Metal Adjust Driver
- 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable
- 5W LED Cold Light, High Brightness, Brightness Adjustable
- Touch Panel Switch to Control Halogen & LED Light Source On/Off Separatly or Together
- All Light Source Brightness Adjustable, Position & Angle Adjustable Freely
- Full Range Light Source Accessories Included, Coaxial Light, Polarizing Light, Ultraviolet Lens, Red/Blue/Green/Yellow Filters
- 80~240V Wide Range Voltage
|
|
|
|
| Specification |
2x - 240x Bullet Comparison Microscope Specification
|
|
2x~240x |
|
Bionocular Head, 30° Incline, Interpupilary Distance 48~75mm, Diopter +/-5 Adjustable |
| Eyepiece
|
WF10x/22mm, High Eyepoint |
WF20x/12mm, High Eyepoint |
| Nosepiece |
6 Hole Click Stop Nosepiece |
| Objective |
LWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x, 6x |
Auxiliary Lens 0.4x, 2.0x |
Working Distance |
101mm |
View Field |
Dia. 2.3~62mm |
| Magnification Correct |

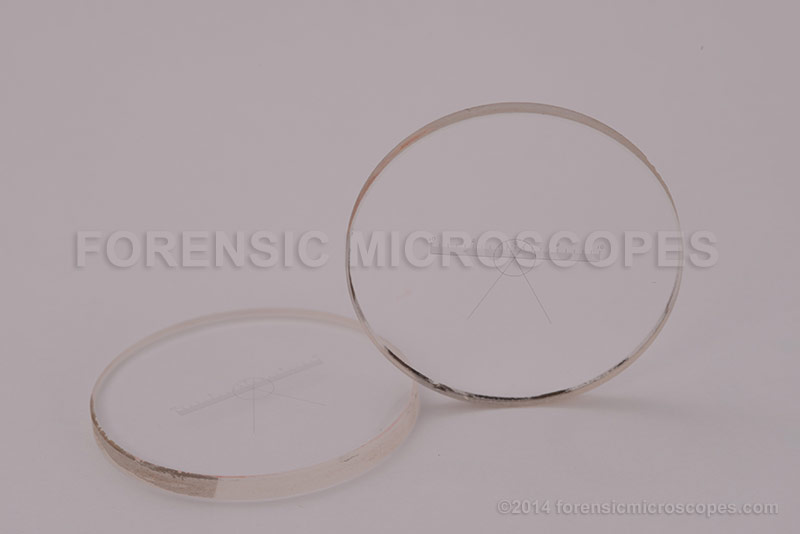

Magnification Correction System, with Correcting Lens |
Separation Line Adjust |

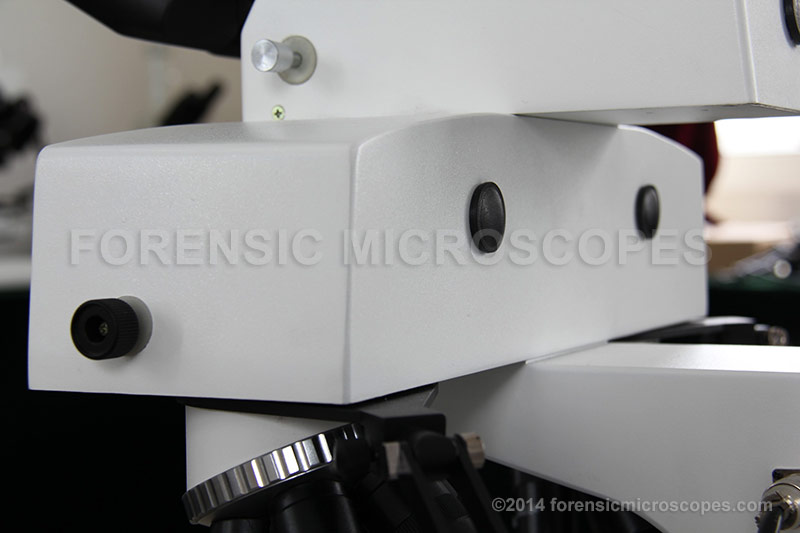

Seperation Line Adjust System in Back, with Special Designed Adjust Driver |
Working Stage |
Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm |

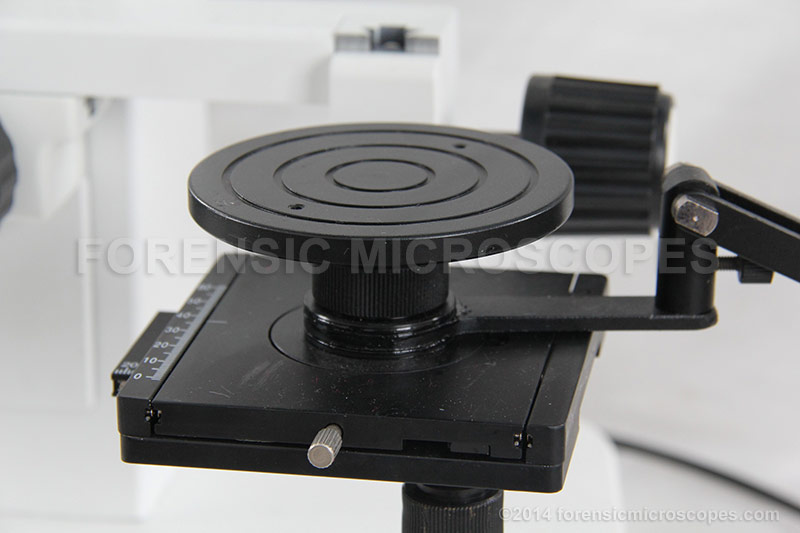

| Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable |
| Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm |

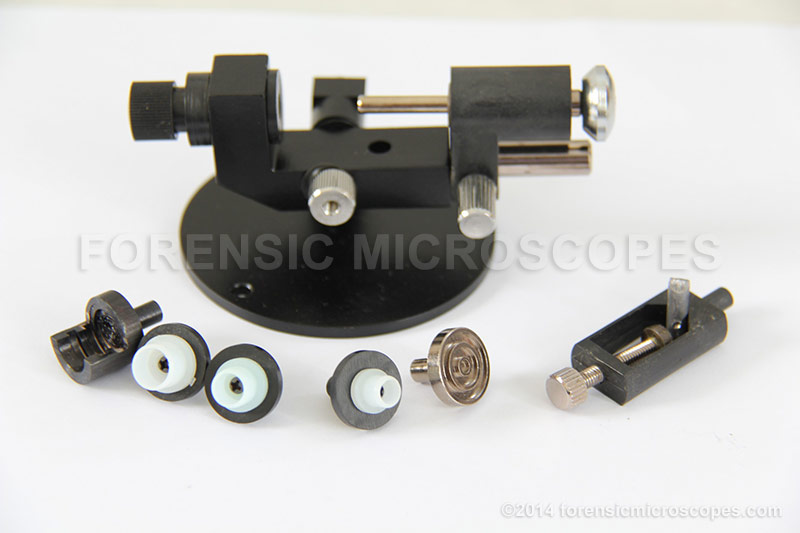

| Bullet Holder |
Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects |
Light Source |
12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable |
5W LED Cold Light, High Brightness, Brightness Adjustable |

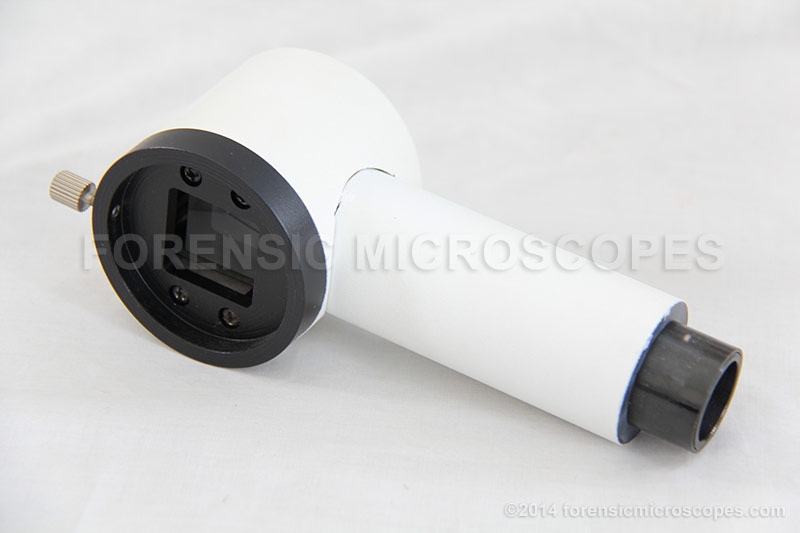

Coaxial Light Lens, to observe in deep hole, or smooth object surface |

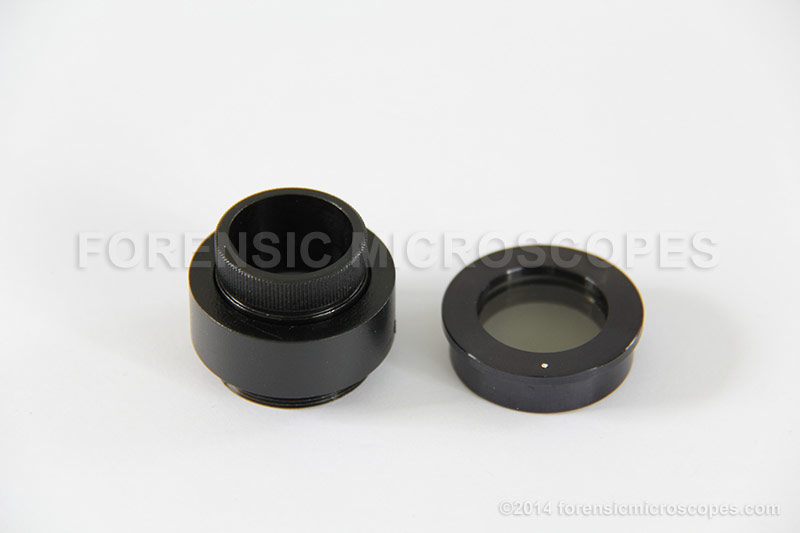

| Polarizing Light Lens, to eliminate flare lights and dazzling lights |
| Transmit Bottom Light |
| Ultraviolet Light Lens |

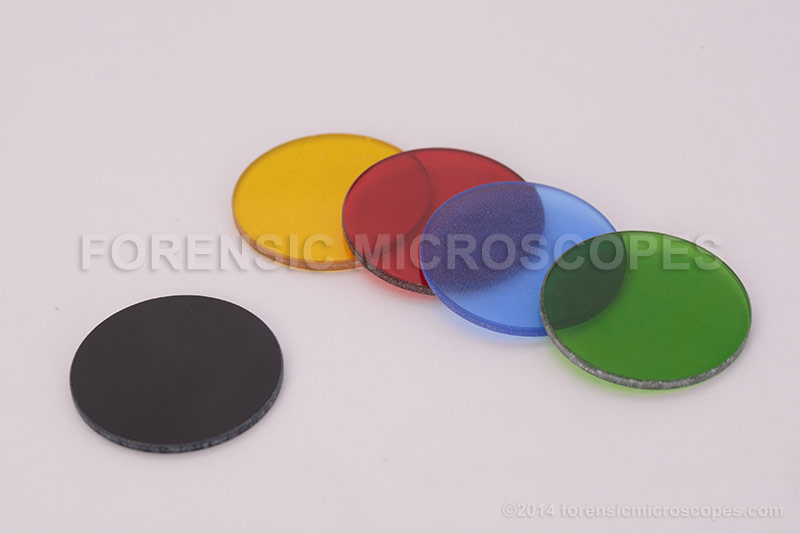

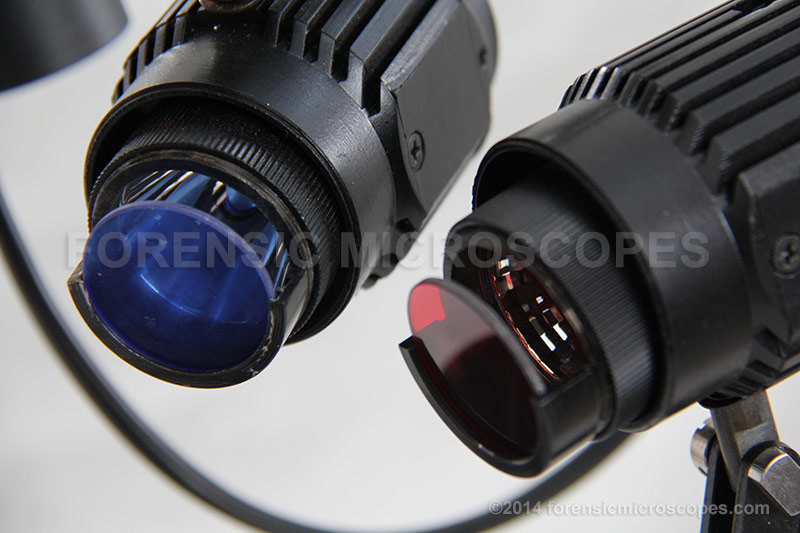

| Filters: Red, Blue, Yellow, Green |

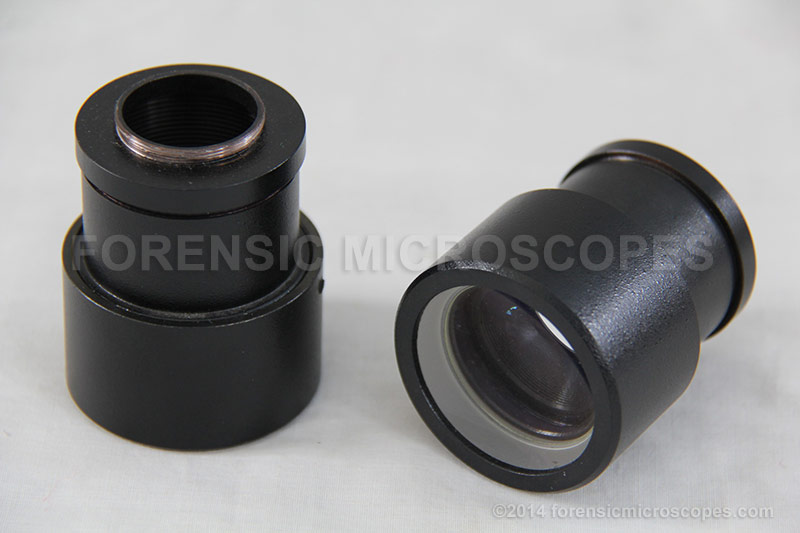

Adapter |

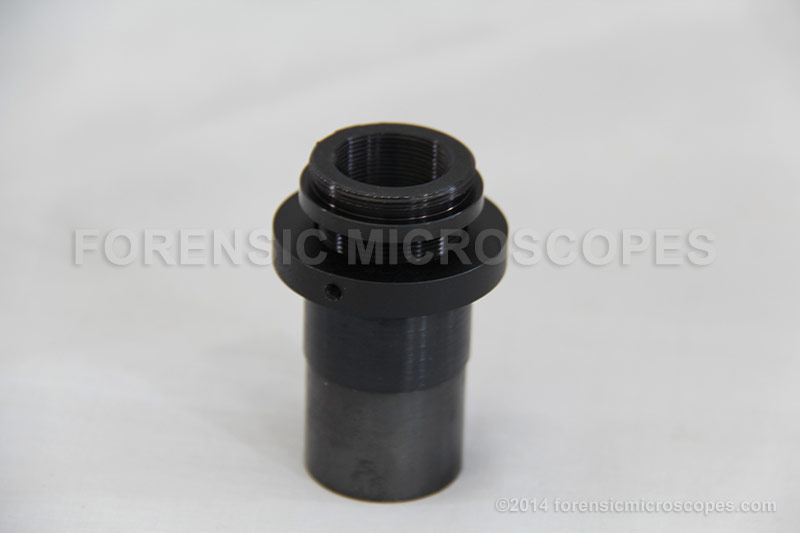

0.5x CCD Adapter |
Front View Photo Adapter for SLR Digital Camera
For user to view and take photo easily |
CCD Camera |
Built-in 3.0M High Resolution Color CCD Camera, USB 2.0 Output, 2048*1536 Pixels, Pixel Size 3.2*3.2um |
Power |
80~240V Wide Range Voltage |
Dimension |
Instrument Size 43*34*65cm |
Packing |

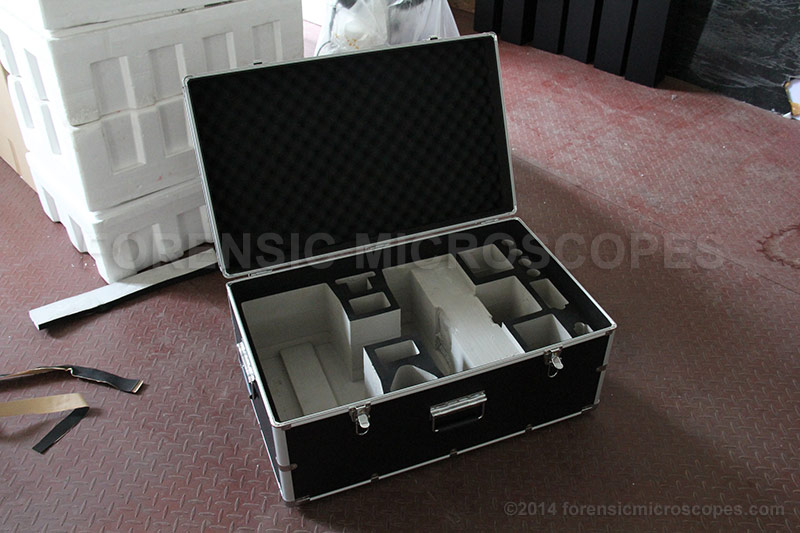

Strong Aluminum Case + Carton, Size 85*50*68, G.W. 65 Kgs |
2x - 240x Bullet Comparison Microscope Optional Accessories
|
| Light Source |
150W Cold Light Source, with Optical Fiber & Light Collector |
| Software |
Professional forensic image analysis software |
| Digital Camera |
9.7'' LCD Pad Digital Camera, Android System,
|
| Optional 3 MP digital USB camera. |
|
|
|
| | | |
|
|
|
| |
