3.8x - 230x Bullet Comparison Microscope
Model: FM201
Price: $4,700.00
Shipping: To be determined
|
| | |
 |
|
| Features |
| |
|
|
3.8x - 230x Bullet Comparison Microscope, newly developed in 2013, is suitable to be used for forensic science education & school, to give an idea and training to the students what is a comarison microscope and learn how to use it. It is simple but including full comparison system function, and with steady quality at very competitive price!
- Total Magnification 3.8x~230x

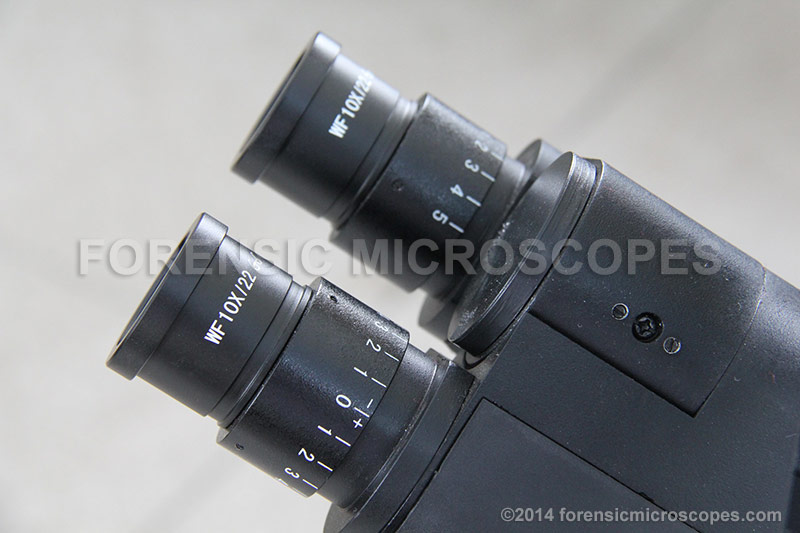

- Wide Field Eyepiece WF10x/22mm, WF20x/12mm, High Eyepoint
- 5 Step Zoom Plan Objective 0.8x, 1.25x, 2x, 3.2x, 4.8x
- Auxiliary Lens 0.4x and 2.0x Included
- Full left/right, split-image or overlapping image comparision
- Magnification Correcting System, with Correcting Lens
- Separation Line Adjusting System, with Special Designed Metal Adjust Driver
- 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable
- 5W LED Cold Light, High Brightness, Brightness Adjustable
- Touch Panel Switch to Control Halogen & LED Light Source On/Off Separatly or Together
- All Light Source Brightness Adjustable, Position & Angle Adjustable Freely
- Full Range Light Source Accessories Included, Coaxial Light, Polarizing Light, Ultraviolet Lens, Red/Blue/Green/Yellow Filters
- 80~240V Wide Range Voltage
|
|
|
|
| Specification |
3.8x - 230x Bullet Comparison Microscope
Specification
|
|
Magnification |
3.8x~230x |
Head |
Bionocular
Head, 30° Incline, Interpupilary Distance 48~75mm, Diopter +/-5 Adjustable |
| Eyepiece |
WF10x/22mm, High Eyepoint |
|
WF20x/12mm, High Eyepoint |
|
Objective |
5 Step Zoom Plan Objective 0.8x, 1.25x, 2x, 3.2x, 4.8x |
|
Auxiliary Lens 0.4x, 2.0x |
Working Distance |
101mm |
View Field |
Dia. 2.3~62mm |
|
Magnification Correcting |
Magnification Correction System, with Correcting Lens |
|
Separation Line Adjusting |
Seperation Line Adjust System in Back, with Special Designed Adjust Driver |
|
Working Stage |
Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm |
| Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable |
| Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm |
Light Source |
12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable |
5W LED Cold Light, High Brightness, Brightness Adjustable |
Coaxial Light Lens, to observe in deep hole, or smooth object surface |
Polarizing Light Lens, to eliminate flare lights and dazzling lights; |
| Transmit Bottom Light |
| Ultraviolet Light Lens |
Filters: Red, Blue, Yellow, Green |
|
Adapter
|
0.5x CCD Adapter |
Front View Photo Adapter for SLR Digital Camera
For user to view and take photo easily |
Power |
80~240V Wide Range Voltage |
|
Dimension |
Instrument Size 37*30*63cm |
|
Optional
Accessories |
| Light Source |
150W Cold Light Source, with Optical Fiber & Light Collector |
| LCD Pad Digital Camera |
9.7'' LCD Pad Digital Camera, Android System,
See A18.1825-LCD |
| Optional 3 MP digital USB camera. |
|
|
| | | |
|
|
|
| |
