| Product Overview |
| |
|

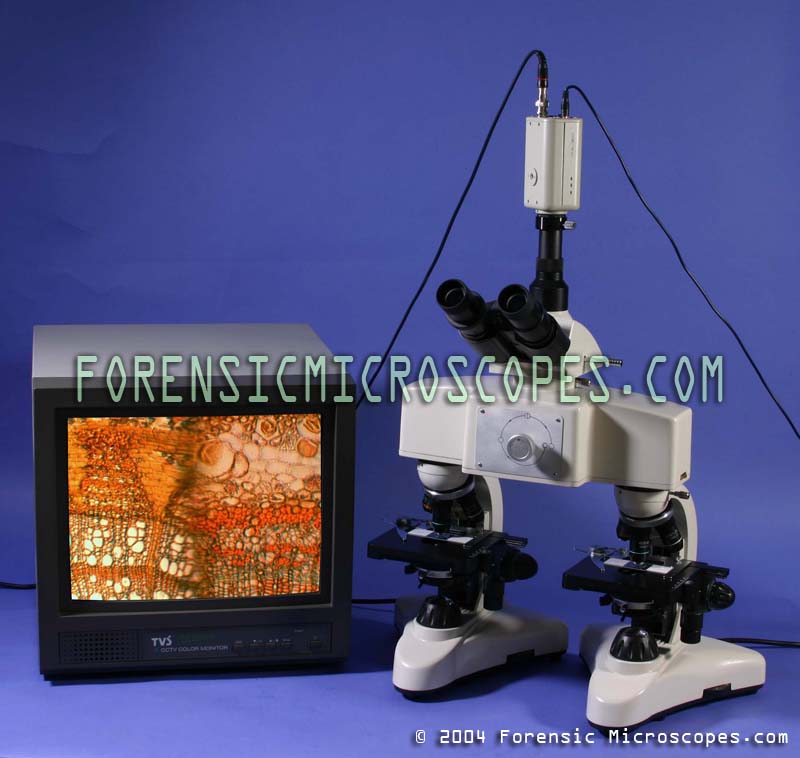

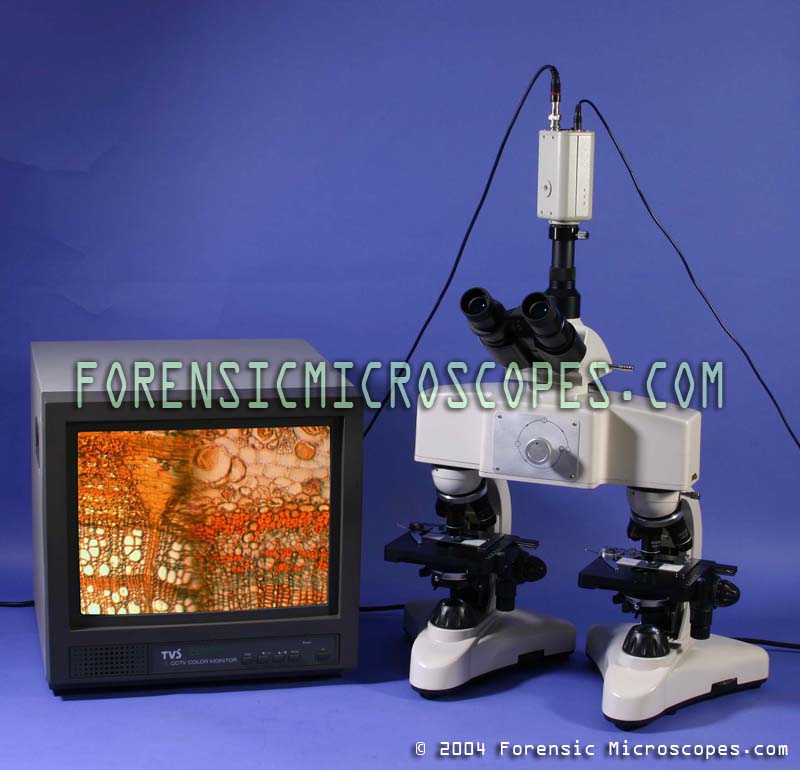

- High Power Forensic Comparison Trinocular Microscope!
- Great for crime laboratories where comparison of biological forensic evidence is examined under high power compound light microscopes.
- Image of both forensic specimens is compared side by side in a split screen. The divider line is movable so either left or right side microscope image can be fully viewed or partially viewed. If partially viewed, the other side's image appears. So image can be 100 percent of left, 100 percent of right, or any fraction. The dividing bridge optics has the unique ability to reverse the left and right image, so the left scope's image is on the right of viewing field, and right is on the left. Also, the divider line is clean and with no thickness. Other forensic comparison scopes have a thick divider line obstructing the comparison process. This forensic comparison microscope gives the cleanest division between images that we have seen.
- Perfect for crime scene investigation and forensic science educational classes!
- Forensically analyze and compare textile fibers, hair, dried paint, and various biological specimens on slides.
- Each side of the unit is a fully functional microscope, with the ability to independently set the magnification and illumination.
- The illumination source is contained in the base of each microscope and provides transmitted illumination to the forensic specimen.
|
|
|
|
| Specification |
|
Camera Equipment Included |
| |
|
- Total Video - Photography Solution! Includes two cameras! Get a USB computer connected color digital microscope camera plus a CCD video camera for NTSC analog output to a TV. This is an incredible deal as these cameras are normally sold separately for hundreds of dollars. They are fully integrated into the microscope so you don't need to waste time trying to figure out what accessories may be needed for video or photography.
- Includes the required photography accessories such as phototube and c-mount for attaching each different camera. The included expensive accessories are normally sold separately.
- Camera #1: USB Camera for Connection to Computer!
- Reduction Lens System built into the camera. This lens system is important to give a more realistic image that isn't too magnified.
- Capture Live Full Motion Digital Video!
- Capture Stunning 640x480 and 320x240 Pixel Digital Still Images!
- Simple to Use. Plug Camera into Your Computer's USB Port, Load the Software, and You're Taking Images!
- Great for Viewing Specimens and Displaying on a Computer!
- Everything You Need: Microscope, Camera, Easy-to-Use Windows Capture and Editing Software, USB Cable. You Provide Only the Computer.
- Camera #2: Video Microscopy Solution! CCD Color Video Camera with NTSC (or PAL is desired) format analog output for connection to CCTV monitor or to normal Television!
- The CCTV Display Monitor is Not Included.
- Works on most Televisions and VCR's for Viewing and Recording of Full Motion Video!
- CCD Camera Details: 1/3 Inch CCD Color Video Camera, NTSC Video Output Format, 420 Horizontal Lines Resolution, Low Light Requirement, with power supply and video cable with RCA jack (most TV's and VCR's have RCA inputs).
|
|
|
|
Special Features |
| |
|
- Features 30mm Eyepiece Ocular Tubes! Most compound scopes are 23mm. The larger size allows for less eye strain, much easier viewing, and a larger and better quality image! After looking into these awesome eyepieces, you would never want a smaller 23mm ocular! Before buying a different scope, ask if it has the cheap 23mm oculars!
- Unique Ability to have Image in Both Oculars and Photo Port Simultaneously. This is Perfect for Training as the Binocular Eyepieces can be viewed by the Instructor, and Everybody Else can Watch the viewing screen. Most Trinocular Scopes lose light in one or both oculars when light is diverted to the photo port.
|
|
|
|
Eyepieces and Magnification |
| |
|
- Each microscope has four brightfield transmitted light magnifications: 40x, 100x, 400x, and 1000x.
- Each microscope has four brightfield achromatic DIN objectives: 4x (0.10 NA), 10x (0.25 NA), 40x (0.65 NA, spring loaded), 100x (1.25 NA, oil immersion, spring loaded).
- Eyepiece Set Included: 30mm diameter wide field 10x / 20mm Field. High eyepoint eyepieces, great for users with eyeglasses. Includes rubber eyeguards for blocking stray light.
|
|
|
|
Microscope Head Details |
| |
|
- 30 Degree Inclined Trinocular Head (Easier to View than 45 Deg.) Rotatable 360 Degrees.
- Adjusts to the Distance Between your Eyes: 55 to 75mm InterPupillary Distance.
- Diopter Adjustment to Correct for Your Specific Vision Needs.
|
|
|
|
Condenser - Iris - Filters |
| |
|
- Each microscope has: 1.25 N.A. Abbe substage light condenser, condenser movement using rack and pinion gears, iris diaphragm and swing-out filter holder.
- Condenser Alignment Screws with condenser travel limit stop screw.
- Filters included for each of the two microscopes: blue, green, and yellow.
|
|
| |
|
|
|
Illumination |
| |
|
- Variable Intensity 20W Tungsten Halogen Transmitted Base Illumination.
|
|
| |
|
|
|
Stage Specifications |
| |
|
- Two Large Graduated Mechanical Movable (up/down and longitudinal Y-direction) Stages: 130 (X-dimension) x 125mm (Y-dimension).
- Low Position Coaxial X-Y Slide/Stage Movement Knobs - Range of Movement: 70mm (X-Direction) x 30mm (Y-Direction).
|
|
| |
|
|
|
Focusing |
| |
|
- Fine and coarse coaxial focusing knobs on both sides of each forensic comparison microscope.
- Adjustable Screw-Stop to Limit Coarse Range to Protect Specimens.
- Tension Adjustable Coarse Focusing.
- Additional focusing adjustment on right side of comparison bridge to equate magnifications of each microscope.
|
|
| |
|
|
|
Size - Weight |
| |
|
- Total Overall Height of Microscope: 560mm.
- Instrument Weight: 11.8 Kg.
|
|
| |
|
|
|
Aluminum Carrying Case |
| |
|
- Includes extra bulb, fuse, and two bottles of immersion oil.
- Includes: Extra 5x Eyepiece with Built-in Crosshair Reticle.
- Comes with two Extra 20W Halogen Bulbs, Dust Cover, and Cleaning Cloth.
|
|
| |
|
|
|
Additional Information |
| |
|
- Manufactured under ISO: 9001 Standards.
- Protective Molded Styrofoam Container.
- Precision Ground Glass Lens.
- Quality Construction, Metal Frame.
- 110 VAC (email about 220V availability).
- 100% Brand New!
|
|
| |
|
|
|
5 Year Manufacturer's Warranty |
| |
|
- The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
- If your system needs repair, simply let us know and we will see that it is back in service ASAP.
|
|
| |
|
|
|
|
| |
|
- BONUS: Includes an Aluminum Carrying Case with Precut Foam for safe transportation of your precision instrument.
|
|
| |
|
|
