Model: fm0068000a

Price: $ 3,299.98
Shipping/Handling/Insurance: $79.98

 Product Overview
  • Professional High Power Forensic Comparison Binocular Microscope!
  • Great for High Power Microscopic Comparison of Specimens!
  • Image of Both Specimens is shown Side-By-Side in a Split Screen Viewing for Detailed Analysis.
  • Perfect for Crime Scene Investigation and Forensic Science!
  • Analyze and Compare Bullets, Bullet Cartridge Casings, Scratch Marks, Wires, Fibers, Hair, Paint Fragments, and Biological Specimens.
  • Each side of the unit is a fully functional microscope, with the ability to independently set the magnification and illumination.
  • Three separate illumination sources are built into the unit: transmitted light from the base, incident light from side mounted lamps, and through-the-lens epi-illumination for metallurgical applications.

Eyepieces and Magnification
  • Three Magnifications: 40x, 100x, and 400x.
  • Eyepiece Sets Included: Wide Field 10x and Normal Field 15x.
  • Three Achromatic Objectives on each side: 4x, 10x, and 40x. Quad Nosepiece with four openings for extra optional objective.
  • Spring Loaded 40x Objective to Protect Slides.

  • System is selectable between three illumination sources.
  • Transmitted Base Illumination: Variable Intensity Halogen. Bottom light source can be moved around to precisely align the path.
  • Incident Reflected Illumination: Side mounted lamps with variable intensity halogen bulbs cast reflected light on an angle.
  • Metallurgical Epi-Illumination: System comes with halogen variable intensity through-the-lens illumination for use with metallurgical or opaque specimens.

Microscope Head Details
  • 45 Degree Inclined Binocular Head.
  • Adjusts to the Distance Between your Eyes: 55 to 75mm InterPupillary Distance.
  • Diopter Adjustment to Correct for Your Specific Vision Needs.

Condenser - Iris - Filters
  • For Transmitted Illumination: 1.25 N.A. Abbe Substage Condenser, Condenser Movement on Rack and Pinion Steel Gears, Iris Diaphragm and Swing-Out Filter Holder. Condenser Alignment Screws. Daylight Blue Clear and Daylight Blue Frosted Filters.
  • For Incident Illumination: Light Focusing Knobs.
  • For Metallurgical Epi-Illumination: Green and Daylight Blue Filters.

Stage Specifications
  • Two Large Graduated Mechanical Movable (up/down and longitudinal Y-direction) Stages: 130 x 130mm.
  • Low Position Coaxial X-Y Slide/Stage Movement Knobs - Range of Movement: 75mm (X-Direction) x 40mm (Y-Direction).
  • Three Types of Stages: Stage for glass slide that would normally use transmitted bottom light. Stage for Opaque specimens, such as metallurgical samples using the epi-illumination or incident light. Bullet Stage that holds bullets in place.

  • Fine and Coarse Focusing Knobs.
  • Adjustable Screw Stop to Limit Coarse Range to Protect Specimens.

Size - Weight
  • Total Overall Height of Microscope: 520mm.
  • Instrument Weight: 45 lbs.

Included Items
  • Includes: Extra 10x Eyepiece with Built-in Measuring Reticle: X-Scale, 10mm in 100 divisions.
  • Includes: Extra 5x Eyepiece with Built-in Crosshair Reticle.
  • Comes with two Extra 20W Halogen Bulbs, Dust Cover, and Cleaning Cloth.

Other Specifications
  • Ships in Molded Styrofoam Container for protection.
  • Manufactured under ISO: 9001 Standards.
  • 110 VAC Power Requirement (Contact us about 220V availability).
  • High Quality Solid Construction!
  • Precision Made Glass Optics!
  • Brand New, Never Used!

Manufacturer's Warranty
  • Warranty is 5 years on all microscope equipment.
  • The microscope warranty covers problems arising from normal usage.
  • We will repair or replace your defective microscopy equipment as needed during the warranty period.

  • Optional 100x Oil Immersion Objective Lens Pair to give High Power 1000x Magnification using the WF10x Eyepieces.

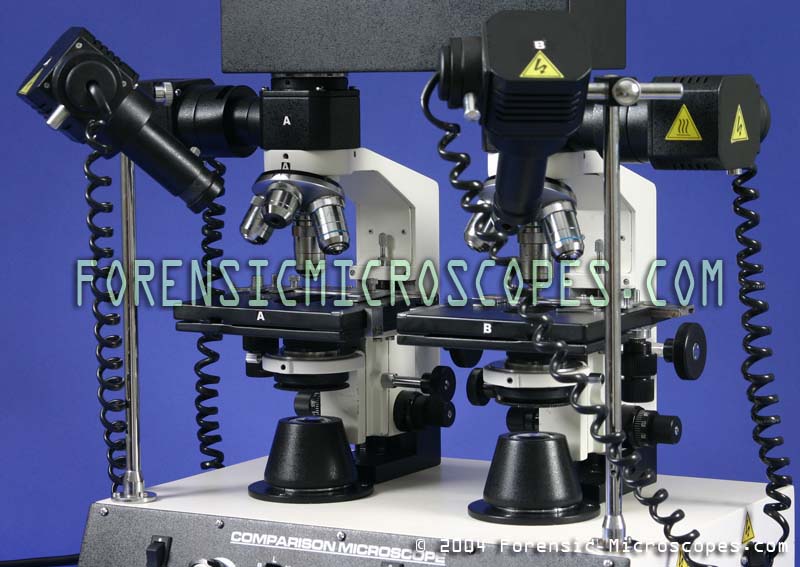

Forensic microscopy system for comparing two images simultaneously.

Images taken using this microscope.
Comparison Between Two Pennies
Split Images Taken Under 4x Objective

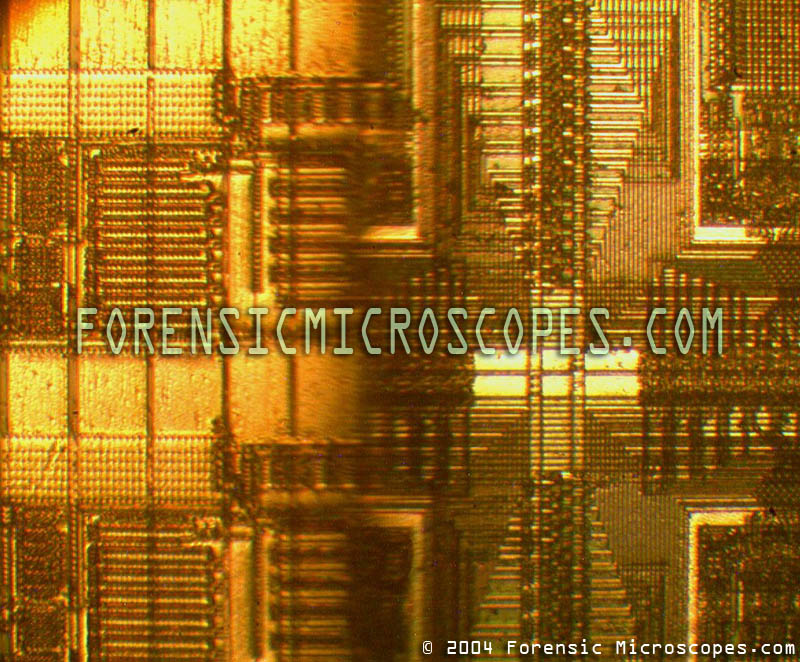

Two Wafers
in Split Images
Photo Taken Under 10x Objective
